#17-533: 25mm Dia., Manual Filter Wheel, Quick Start Optical Mounts
クイックスタート光学マウントは、光学ラボテーブル面から光軸までが5" (127mm) の共通高さでデザインされており、必要な取り付け金具すべての組み合わせで容易なシステム実装を可能にします。様々な種類の光学部品に向けてデザインされたクイックスタート光学マウントを使い、複雑なシステムや実験を余計な光軸調整を行うことなく簡単に構成することができます。クイックスタート光学マウントは、 Eシリーズ キネマティックマウント , TECHSPEC キネマティックマウント, コンパクトミラー & レンズマウント や レンズホルダーといったエドモンド・オプティクスの基本的マウントを用いて新たなベンチトップ光学システムを迅速かつ便利にセットアップするのに理想的です。
補足： 本アッセンブリ品を所定の向きに合わせるために、クランプフォーク #15-859 か コンパクトクランプ #16-335 をご使用ください。
| Quick Start Optical Mounts | ||
| Kit Stock No. | Kit Description | Contents of Kit |
| #17-513 | 25.0/25.4mm Optic Diameter, X-Y Translating Quick Start Optical Mounts | #62-956: 25.0/25.4mm Optic Dia., X-Y Translating Optic Mount #16-460: Pedestal Extender 20.8mm, M6, 8-32 #15-849: Pedestal Post, English, 76.2mm |
| #17-514 | 50.0/50.8mm Optic Diameter, X-Y Translating Optic Mount, Quick Start Optical Mounts | #62-957: 50.0/50.8mm Optic Dia., X-Y Translating Optic Mount #16-317: Pedestal Extender 8.0mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-515 | 25.4mm Optic Dia., Fixed Optic Mount, Quick Start Optical Mounts | #64-561: 25.4mm Optic Dia., 10mm Max Optic Thickness, Optic Mount #16-305: Pedestal Shim 5/32" (3.97mm) #16-333: 12.5mm Length 1/4"-20, #8-32 Thread Adapter #15-850: Pedestal Post, English, 101.6mm |
| #17-516 | 50.0mm Optic Dia., Fixed Optic Mount, Quick Start Optical Mounts | #64-567: 50.0mm Optic Dia., Optic Mount #16-321: Pedestal Extender 16.8mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-517 | 25/25.4mm ID, Precision Gimbal Mount, Quick Start Optical Mounts | #54-999: 25.0/25.4mm Optic Dia., Precision Gimbal Mount #16-308: Pedestal Shim 1/16" (1.59mm) #16-329: 10.5mm Length M6, #8-32 Thread Adapter #15-849: Pedestal Post, English, 76.2mm |
| #17-518 | 50/50.8mm ID, Precision Gimbal Mount, Quick Start Optical Mounts | #55-000: 50.0/50.8mm Optic Dia., Precision Gimbal Mount #16-310: Pedestal Shim 1/64" (0.40mm) #16-321: Pedestal Extender 16.8mm, 8-32, M6 #15-848: Pedestal Post, English, 50.8mm |
| #17-519 | 25.0/25.4mm Optic Dia., Kinematic Mirror Mount with Micrometer, Quick Start Optical Mounts | #55-456: 25.0/25.4mm Optic Dia., Kinematic Mirror Mount with Micrometer #16-319: Pedestal Extender 14.0mm, 8-32, M6 #16-309: Pedestal Shim 1/32" (0.79mm) #15-849: Pedestal Post, English, 76.2mm |
| #17-520 | 50.0/50.8mm Optic Dia., Kinematic Mirror Mount with Micrometer, Quick Start Optical Mounts | #56-326: 50.0/50.8mm Optic Dia., Kinematic Mirror Mount with Micrometer #16-304: Pedestal Shim 3/16" (4.76mm) #16-331: 15.0mm Length M6, #8-32 Thread Adapter #15-849: Pedestal Post, English, 76.2mm |
| #17-521 | 25/25.4mm Diameter, E-Series Kinematic Mount, Quick Start Optical Mounts | #15-866: 25.0/25.4mm Optic Dia., E-Series Kinematic Mount #15-850: Pedestal Post, English, 101.6mm |
| #17-522 | 50/50.8mm Diameter, E-Series Kinematic Mount, Quick Start Optical Mounts | #15-867: 50.0/50.8mm Optic Dia., E-Series Kinematic Mount #15-857: Pedestal Extender, English, 76.2mm #15-845: Pedestal Post, English, 12.7mm |
| #17-523 | 25/25.4mm Dia., Kinematic Mount, 3-Screws, Quick Start Optical Mounts | #58-854: 25.0/25.4mm Optic Dia., Kinematic Mount, 3-Screws #15-850: Pedestal Post, English, 101.6mm |
| #17-524 | 50/50.8mm Dia., Kinematic Mount, 3-Screws, Quick Start Optical Mounts | #58-855: 50.0/50.8mm Optic Dia., Kinematic Mount, 3-Screws #15-857: Pedestal Extender, English, 76.2mm #15-845: Pedestal Post, English, 12.7mm |
| #17-525 | 25.4mm w/ micrometer, Polarizer Mount, Quick Start Optical Mounts | #55-011: 25.4mm w/ micrometer, Polarizer Mount #16-322: Pedestal Extender 18.0mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-526 | 50.0mm w/ micrometer, Polarizer Mount, Quick Start Optical Mounts | #56-329: 50.0mm w/ micrometer, Polarizer Mount #16-317: Pedestal Extender 8.0mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-527 | 50mm Cube, Prism Mount Metric, Quick Start Optical Mounts | #55-013: 50mm Diameter, Prism Mount Metric #16-322: Pedestal Extender 18.0mm, 8-32, M6 #16-309: Pedestal Shim 1/32" (0.79mm) #15-848: Pedestal Post, English, 50.8mm |
| #17-528 | 50mm Cube Rotary Mount with Prism Holder, Quick Start Optical Mounts | #53-027: Rotary Mount with Prism Holder #16-325: Pedestal Extender 18.0mm, 8-32, 1/4"-20 #15-848: Pedestal Post, English, 50.8mm |
| #17-529 | 2"/50.8mm Square, Bar Clamp, Quick Start Optical Mounts | #54-995: 60mm sq - Rectangular Bar Clamp #16-318: Pedestal Extender 11.0mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-530 | 2"/50.8mm Diameter, Bar Type Lens / Filter Holder, Quick Start Optical Mounts | #03-669: 7.0 - 67.0 Optic Height, English Bar-Type Optic Holder #16-323: Pedestal Extender 11.0mm, 8-32, 1/4"-20 #15-849: Pedestal Post, English, 76.2mm |
| #17-531 | 2"/50.8mm Square, Spring Mount Filter Holder, Quick Start Optical Mounts | #55-531: Spring Mount Filter Holder, Metric #16-320: Pedestal Extender 16.0mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |
| #17-532 | 30mm Dia., Multiple Filter Holder, Quick Start Optical Mounts | #55-006: 30mm, Multiple Filter Holder #16-321: Pedestal Extender 16.8mm, 8-32, M6 #15-849: Pedestal Post, English, 76.2mm |

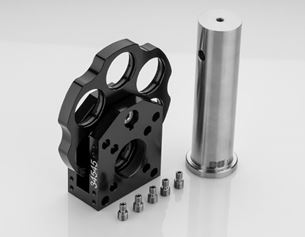

| #17-533 | 25mm Dia., Manual Filter Wheel, Quick Start Optical Mounts | #34-545: Manual Cage Filter Wheel #16-329: 10.5mm Length M6, #8-32 Thread Adapter #15-850: Pedestal Post, English, 101.6mm |
| #17-534 | 25.4mm Optic Dia., Thin Mirror Mount, M4, Quick Start Optical Mounts | #13-590: 25.4mm Optic Dia., Thin Mirror Mount M4 #15-844: Pedestal Post, Metric, 101.6mm |
| #17-535 | 25.4mm Optic Dia., Thin Mirror Mount, 8-32, Quick Start Optical Mounts | #13-591: 25.4mm Optic Dia., Thin Mirror Mount, 8-32 #15-850: Pedestal Post, English, 101.6mm |
| #17-536 | 25.0/25.4mm Optic Dia., SM1 Thin Mount, M4, Quick Start Optical Mounts | #13-787: 25.0/25.4mm Optic Dia., SM1 Thin Mount, M4 #15-844: Pedestal Post, Metric, 101.6mm |
| #17-537 | 25.0/25.4mm Optic Dia., SM1 Thin Mount, 8-32, Quick Start Optical Mounts | #13-788: 25.0/25.4mm Optic Dia., SM1 Thin Mount, 8-32 #15-850: Pedestal Post, English, 101.6mm |
