Canopus™ 反射型ビームエキスパンダー

TECHSPEC® Canopus™ Reflective Beam Expanders

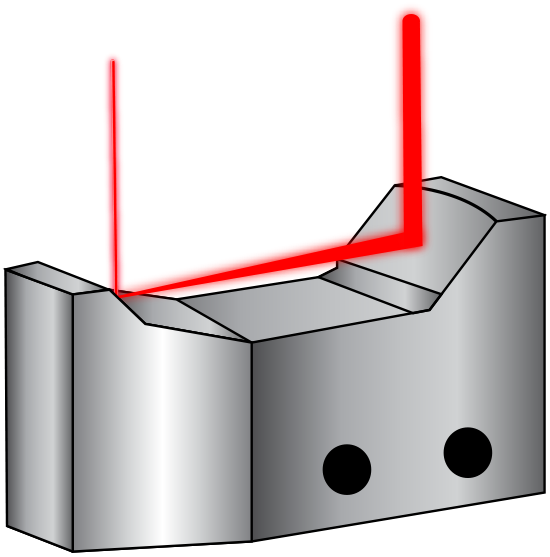

TECHSPEC® Canopus™ Reflective Beam Expanders Canopus Reflective Beam Expander Mounted on its Side
×
  • 250nmから10μmまでのUV、可視、IRアプリケーション用増反射コーティング
  • 2Xから5Xまでの複数の反射固定倍率
  • 熱的影響の減少とアライメントの単純化を可能にするモノリシックデザイン
  • パテント取得のダイヤモンド切削技術を用いて製造

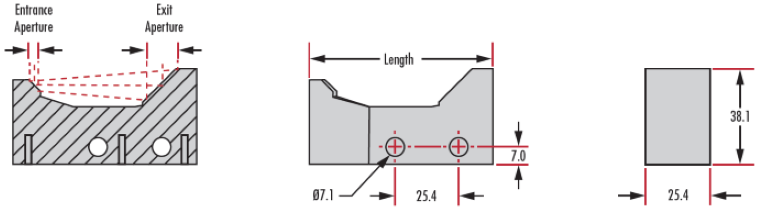

共通仕様

全幅 (mm):
38.10
全高 (mm):
25.4
入射側開口径 (mm):
4
入射角 (°):
0
基板:
Aluminum 6061-T6
表面品質 (キズ-ブツ):
40-20
設計波長 DWL (nm):
Broadband
 波長範囲 (nm)   拡大力   コーティング   出射側開口径 (mm)   比較する   商品コード   価格 (税別)  カートに入れる
250 - 700 2X Enhanced Aluminum (250-700nm) 8 #37-185 ¥80,850 数量 6+ ¥71,400   見積依頼する
  • 5-7営業日
    ×

250 - 700 3X Enhanced Aluminum (250-700nm) 12 #37-186 ¥80,850 数量 6+ ¥71,400   見積依頼する
  • 5-7営業日
    ×

250 - 700 5X Enhanced Aluminum (250-700nm) 20 #37-188 ¥80,850 数量 6+ ¥71,400   見積依頼する
  • 5-7営業日
    ×

700 - 12000 2X Bare Gold 8 #37-189 ¥86,350 数量 6+ ¥76,200   見積依頼する
  • 5-7営業日
    ×

700 - 12000 3X Bare Gold 12 #37-190 ¥86,350 数量 6+ ¥76,200   見積依頼する
  • お問い合わせ
    ×

700 - 12000 5X Bare Gold 20 #37-192 ¥86,350 数量 6+ ¥76,200   見積依頼する
  • お問い合わせ
    ×

400 - 12000 2X Protected Aluminum (400-12000nm) 8 #37-193 ¥77,700 数量 6+ ¥68,500   見積依頼する
  • 5-7営業日
    ×

400 - 12000 3X Protected Aluminum (400-12000nm) 12 #37-194 ¥77,700 数量 6+ ¥68,500   見積依頼する
  • 5-7営業日
    ×

400 - 12000 5X Protected Aluminum (400-12000nm) 20 #37-196 ¥77,700 数量 6+ ¥68,500   見積依頼する
  • 5-7営業日
    ×

600 - 1050 2X Ultrafast-Enhanced Silver 8 #13-073 ¥84,850 数量 6+ ¥74,700   見積依頼する
  • 5-7営業日
    ×

600 - 1050 3X Ultrafast-Enhanced Silver 12 #13-074 ¥84,850 数量 6+ ¥74,700   見積依頼する
  • お問い合わせ
    ×

600 - 1050 5X Ultrafast-Enhanced Silver 20 #13-075 ¥84,850 数量 6+ ¥74,700   見積依頼する
  • お問い合わせ
    ×


TECHSPEC® Canopus™ 反射型ビームエキスパンダーは、広帯域もしくは多波長ビームの拡大や、多種多様な光源を必要とするアプリケーションに最適です。オール反射デザインを採用しているため、チューナブルレーザー、紫外 (UV) レーザー、超短パルスレーザーをはじめとする様々なレーザー光源に使用可能です。また、革新的なデザインにより、最小の波面精度を実現します。反射面、タップ穴、貫通穴など様々な機能を統合したデザインにより、どのようなレーザーアプリケーションにおいてもアライメントや固定、実装が容易に可能です。またモノリシック構造のため、性能および安定性が高く、温度変化による影響も受けません。TECHSPEC Canopus™ 反射型ビームエキスパンダーは、2X、3X、5Xの倍率に、UV、可視、および赤外波長向けのコーティングオプションをラインナップしています。

コストをより重視するアプリケーションに向け、エドモンド・オプティクスはTECHSPEC Scorpii™ Nd:YAG ビームエキスパンダーも販売しています。He-Ne レーザーアプリケーションには、TECHSPEC Arcturus™ He-Ne ビームエキスパンダーをラインナップ。回転式のピント調整機構が許容できるアプリケーションには、TECHSPEC Vega™ レーザーラインビームエキスパンダーTECHSPEC Vega™ 広帯域ビームエキスパンダーをラインナップ。スライド式のピント調整機構を必要とする高精度アプリケーションには、TECHSPEC Draconis™ レーザーラインビームエキスパンダーTECHSPEC Draconis™ 広帯域ビームエキスパンダーをご覧ください。

対応する光源

  • UV レーザー (エキシマ、Nd:YAGなど)
  • 赤外レーザー (Nd:YAG、CO2、量子カスケードなど)
  • 超短パルスレーザー (チタンサファイア、ファイバーレーザーなど)
  • チューナブルレーザー (チタンサファイア、色素、量子カスケードなど)
